In modern industrial environments, vibration monitoring is one of the most effective ways to understand machine health, detect early faults, and prevent costly downtime. Whether you are monitoring rotating equipment, structural assets, or critical machinery in harsh environments, a reliable and flexible data acquisition platform is essential.
This is where NI CompactRIO (cRIO) stands out as a powerful and proven solution, and where Synovus Solutions helps turn that capability into a deployable, production‑ready vibration monitoring system.
Why Vibration Monitoring Matters
Vibration signatures often reveal problems long before a machine fails. Issues such as imbalance, misalignment, bearing wear, looseness, and resonance can all be identified early through vibration analysis using time‑domain and frequency domain techniques such as FFT and order analysis.
An effective vibration monitoring system must:
- Run continuously and unattended
- Survive harsh industrial environments
- Capture high‑quality data only when it matters
- Present results in clear, intuitive visual formats
- Store data in a form compatible with industry leading analysis tools
NI CompactRIO provides the hardware foundation, while Synovus helps engineers get there faster and with less risk.
Key Advantages for Vibration Monitoring
Headless, Unattended Operation
CompactRIO runs on a real‑time operating system and is designed to operate without a PC, monitor, or keyboard. Once deployed, systems can run 24/7 for months or years, collecting and processing vibration data autonomously.
Harsh Environment Capable
With industrial temperature ratings and resistance to shock and vibration, CompactRIO can be installed close to machinery where traditional PCs cannot survive.
Scalable Multi Channel Vibration Acquisition
CompactRIO based systems scale easily from 4 up to 32 vibration channels, depending on module and chassis selection. This makes it suitable for:
- Motors, pumps, and gearboxes
- Multi bearing machines
- Test rigs and durability setups
- Structural and modal vibration monitoring
As system requirements grow, channels can be added without redesigning the architecture.
Real‑Time Analysis and Clear Visualization
FFT and Frequency‑Domain Analysis
Fast Fourier Transform (FFT) processing allows vibration signals to be viewed in the frequency domain, revealing fault‑related patterns associated with imbalance, bearings, gears, and resonances.

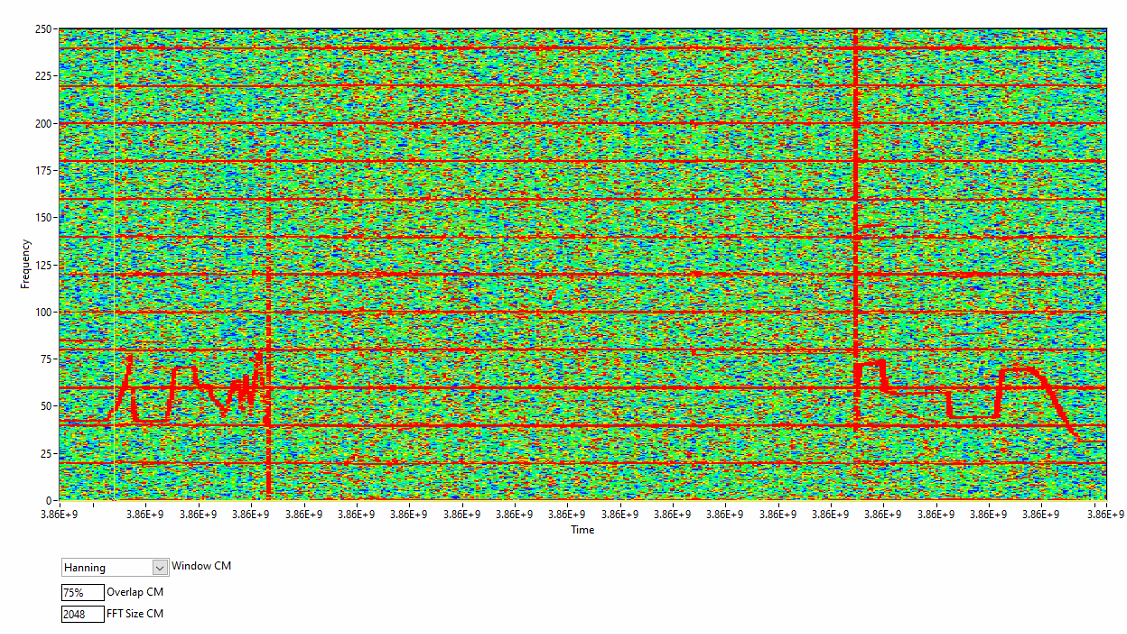

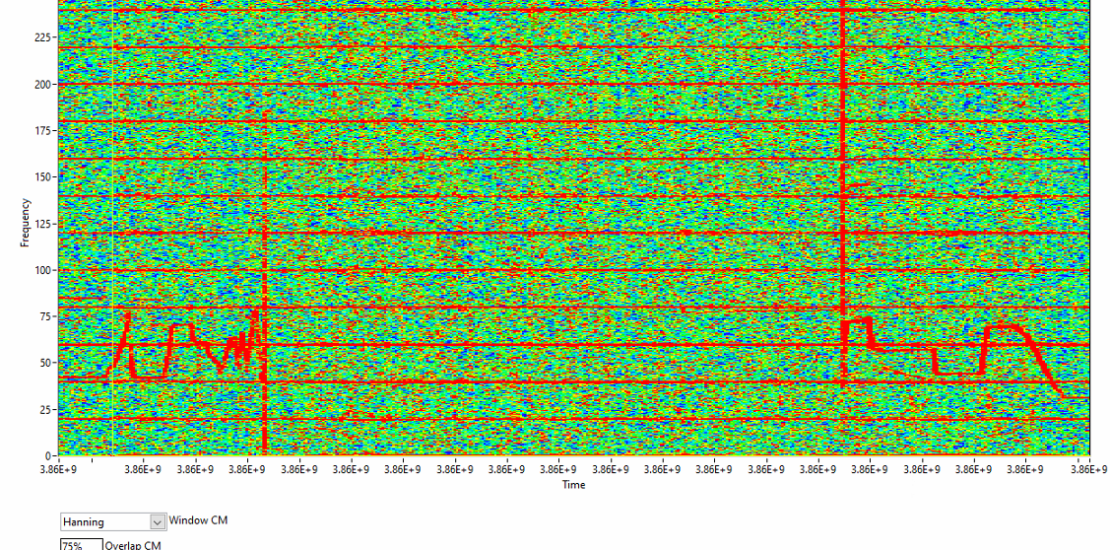

Live ColorMap Displays (Order Analysis Optional)
Live colormaps provide an intuitive way to visualize vibration energy versus frequency (or order) over time or speed.
For variable‑speed machinery, order analysis can be added to clearly separate speed dependent phenomena.

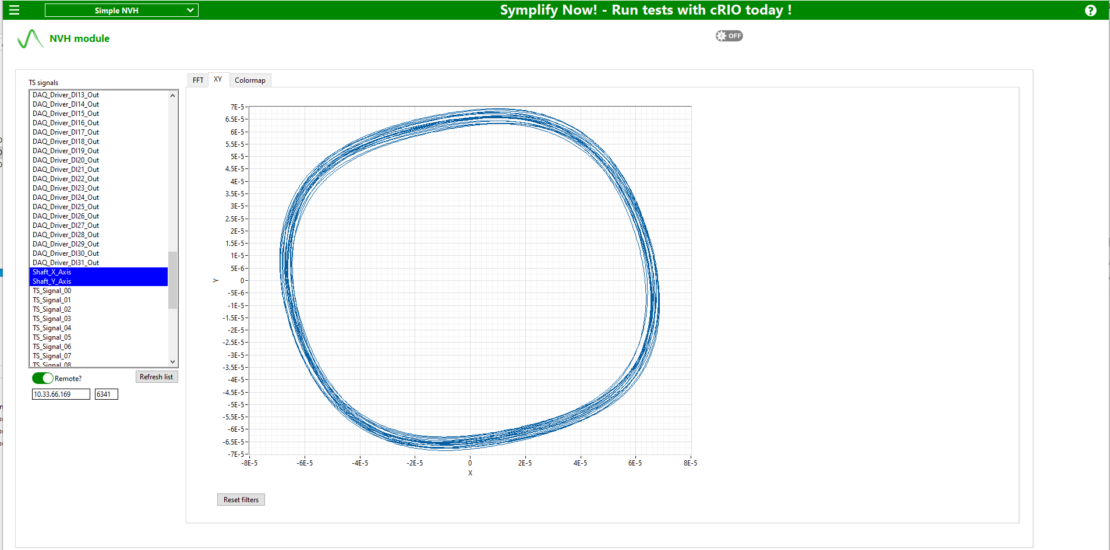

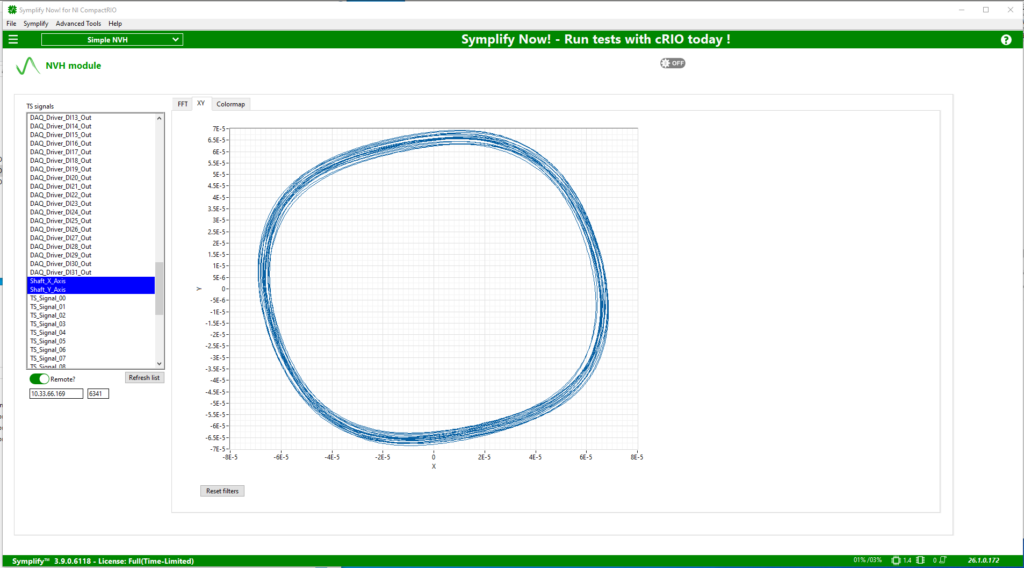

XY Alignment View
XY plots help visualize shaft motion and sensor phase relationships, making misalignment and dynamic behavior easier to understand at a glance.
Out of the Box Benefits of Symplify Now! RTDLC
Symplify Now! RTDLC, developed by Synovus, runs directly on CompactRIO and dramatically simplifies deployment:
- Ready to run headless RT datalogging, no custom application development required
- Trigger based and pre trigger vibration capture out of the box
- Unified support for low speed and high speed logging to local or removable storage
- Configuration through familiar NI tools, avoiding complex real time programming
- Always on reliability for tests and monitoring lasting days, weeks, or months
For advanced use cases, Symplify Now! offers Python integration and optional access to LabVIEW source code, allowing teams to extend analysis, add logic, or integrate custom workflows, without starting from scratch.
A Simple Path to Predictive Maintenance
By combining NI CompactRIO’s rugged real time platform with Synovus’ Symplify Now! software and engineering expertise, organizations gain a scalable, efficient vibration monitoring solution that supports predictive maintenance, faster fault diagnosis, and long‑term reliability.
Final Thought
If your vibration monitoring application demands continuous, unattended operation, event driven intelligence, and compatibility with industry standard analysis tools, NI CompactRIO provides the foundation and Synovus helps you deploy it faster, safer, and with confidence.
